This page includes detailed diagrams of the P3000 to help with installation. For full installation requirements, please see our installation and technical specifications guide.

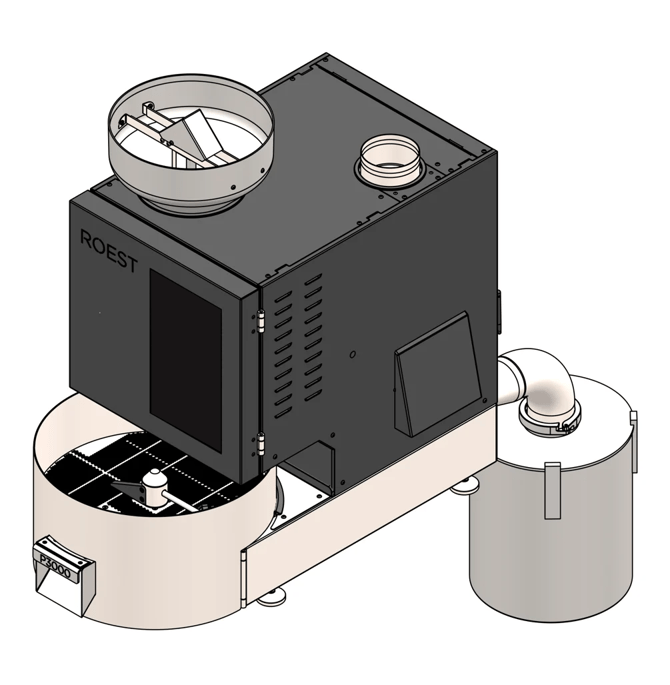

Isometric view
Front elevation
Rear elevation
Side elevation
Plan
3D models
[[MODEL_VIEWER]]
If your browser is compatible, you can view a 3D model of the roaster above.
-
Click and drag with the mouse to rotate the model.
-
Use the scroll wheel to zoom in and out.
-
Right-click and drag to move the model.
You can also download a STEP file for use in architectural models here: P3000 CAD model.
